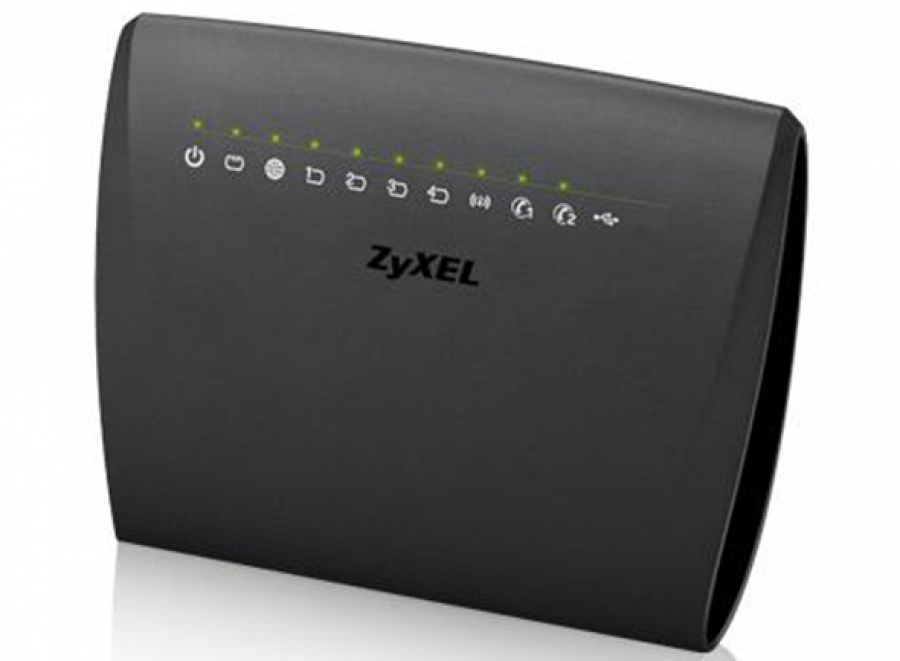

ZyXEL VMG 5313

Specifiche Tecniche

• Marca: ZyXEL
• Modello: ZyXEL VMG 5313
• Dispositivo: Modem, Router, Wireless
• Tipo: ADSL/VDSL

• Caratteristiche Hardware

• Annex: A
• Operating Modes: PPPoE, PPPoA,IPoA, MER, Bridge, 3G/4G Backup
• Standard ADSL / ADSL2+: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.992.3 (G.dmt.bis) , ITU-T G.992.5
• Standard VDSL2: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP）
• Porte rj11: 1 RJ11 Port
• Porta RJ45: 4 porte Gigabit Ethernet (10/100/1000 Base-T),
• Porte USB: 1 porte USB 2.0
• Max Performance: Fino a 100Mbps/100Mbps upstream/downstream

• Caratteristiche Wireless

• Standard wireless: IEEE 802.11b, 802.11g, 802.11n, 802.11ac
• Frequenze: Bande di frequenza da 2,4 e 5 GHz in simultanea
• Sicurezza Wireless: Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering
• Tipo di Antenna: Antenne Integrate

• Caratteristiche Software

• Protocollo PPP/ATM: ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) \IPoA (RFC1577/2225) MER\IPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC – fino al PVC
• Management: Configurazione GUI basata sul Web, interfaccia utente semplice, da usare intuitivamente via browser, Web GUI (HTTP/HTTPS) Command Line Interface (CLI) Firmware upgrade via HTTP/FTP/TR-069 DSL forum TR-069/TR-098/TR-111/TR-064/TR-181 (issue-2) 802.1ag connectivity fault management
• Port Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP,
• Caratteristiche Avanzate: PVC/VLAN Configuration, MAC Clone, DSL Settings, Interface Grouping, QoS, Firewall Generic packet filter DOS attack prevention Parental control
• USB Sharing: Media Server(DLNA)
